Boat Dolly with 26cm Wheels by WheelEEZ®

///Boat Dolly with 26cm Wheels by WheelEEZ®

Boat Dolly with 26cm Wheels by WheelEEZ®

$899.99

This is the most versatile boat dolly on the market today. One single adjustable frame with four-wheel choices makes the WheelEEZ® Boat Dolly unique, user-friendly, and back-saving. Any terrain can be negotiated, and a large boat weight range is covered. Use for Sunfish, small sailboats, fishing boats, kayak fishing equipment, and more.

  • 26cm WheelEEZ® Tuff-Tyre polyurethane foam wheels for flat-proof & maintenance-free operation on firm surfaces for payloads up to 110 kg.
  • Maximum width (axle tip to axle tip) with 49cm wheels 1.95cm
  • Minimum width: 108cm (with 49cm Balloon Wheels)
  • Minimum Length of BD (with 42cm wheels) – 265cm

OPTIONAL Boat Dolly Third Wheel Kit (including the 30cm wheel)
NEW!! Heavy Duty Aluminium Swivel Casters

  • Swivel Caster is made from 6mm heavy duty aluminum. Older plastic caster shown in some photos, new casters are 6mm heavy duty aluminum.  (WZ1-CAS-S)
  • Includes mounting bracket and stainless steel hardware for mounting to WZ1-BD (Boat Dolly)
  • For use with WZ1-30UC (30cm balloon wheel included)

Description

Boat Ramp Dolly without the need for a boat ramp

You can launch your boat from anywhere now. These boat dollies will roll over even the softest sand or any other challenging terrain.
Get your boat into the water using these low-pressure balloon wheels is incredibly easy. And that means spending more time out on the water!

This is the most versatile boat dolly on the market today. One single adjustable frame with four wheel choices makes the WheelEEZ® Boat Dolly unique, user-friendly, and back-saving. Any terrain can be negotiated, and a large boat weight range is covered. Use for Sunfish, small sailboats, fishing boats, kayak fishing equipment, and more.

Features:

    • Single frame adjusts three ways: length, width, and height.
    • Length adjusts to accommodate boats up to 5.8 m long.
    • Width adjusts to accommodate boats up to 2.1 m wide.
    • Height adjusts vertical uprights to increase ground clearance.
    • Maximum width (axle tip to axle tip) with 49cm wheels 1.95cm
    • Minimum width: 108cm (with 49cm Balloon Wheels)
    • Minimum Length of BD (with 42cm wheels) – 265cm
    • Adjustable sling support strap cradles the boat hull.
    • Heavy-duty, marine-grade aluminum frame, anodized inside and outside.
    • Stainless Steel Hardware.
    • Five Wheel Options.
      • 26cm WheelEEZ® Tuff-Tyre polyurethane foam wheels for flat-proof & maintenance-free operation on firm surfaces for payloads up to 110 kg
      • 30cm WheelEEZ® balloon wheels for payloads to 110 kg on sand or other uneven terrain.
      • 38cm WheelEEZ® Tuff-Tyre polyurethane foam wheels for flat-proof & maintenance-free operation on firm surfaces for payloads up to 227 kg
      • 42cm WheelEEZ® balloon wheels for payloads to 160 kg on sand or other uneven terrain.
      • 49cm WheelEEZ® balloon wheels for payloads to 227 kg on sand or other uneven terrain.



   Minimum (cm)  Maximum (cm)
 Overall Frame Length  244  315
 Overall Frame Width  152  241
 Beam Width  137  226
 Upright Stanchion Height  36  46
 Weight
  •  22 kg without wheels
  • Including wheels:
    • 49 cm – 28.2 kg
    • 42 cm – 27.7 kg
    • 38 cm – 27.6 kg
    • 30 cm – 25.3 kg
    • 26 cm – 25.1 kg
 Width axle tip to axle tip  180 cm
 Min length (handle to sling)  240 cm
 Frame  Heavy-duty, marine-grade aluminum frame, anodized inside and outside.
 Pads  PVC Foam
 Hardware  Stainless Steel
 Wheels
  •  30 cm, 42 cm, 49 cm Balloon Wheel
    • Tire: Polyurethane
    • Hub: Polypropylene
    • Bearing: Stainless steel balls in nylon reinforced housing
  • 26cm Solid Foam Wheel
    • Tire: Durable 700gr-density polyurethane foam
    • Hub: Polypropylene
    • Bushing: Nylon reinforced



Optional Third Wheel

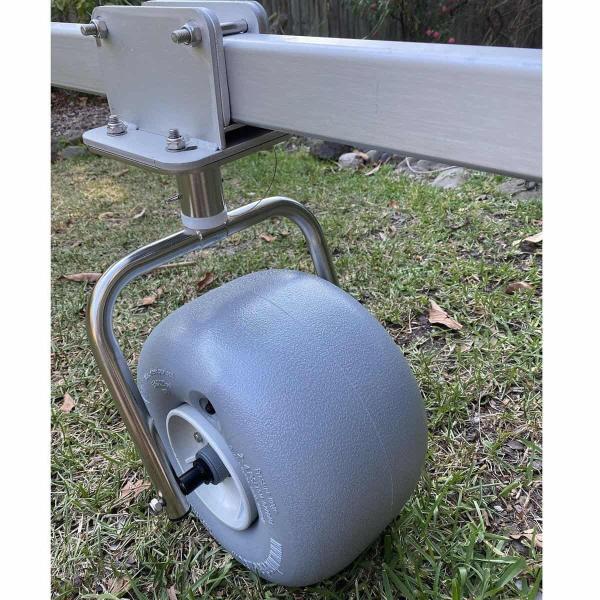

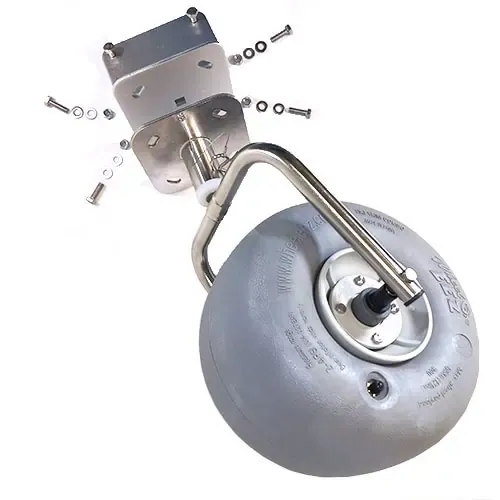

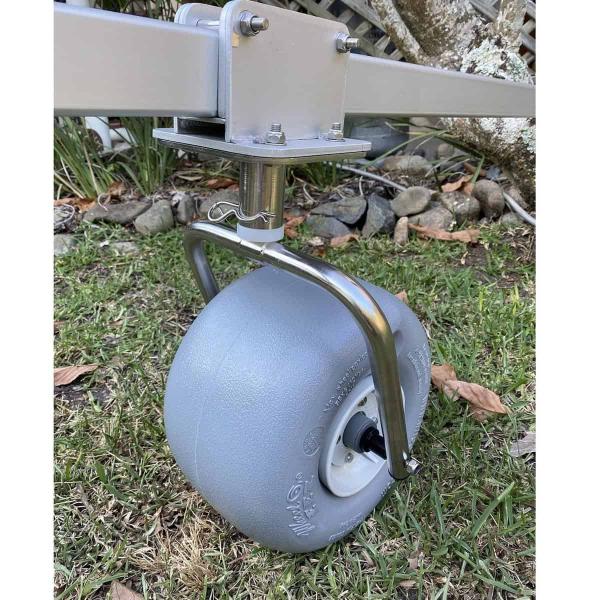

NEW!! Heavy Duty Aluminium Swivel Casters

  • Swivel Caster is made from 6mm heavy duty aluminum. Older plastic caster shown in some photos, new casters are 6mm heavy duty aluminum.  (WZ1-CAS-S)
  • Includes mounting bracket and stainless steel hardware for mounting to WZ1-BD (Boat Dolly)
  • For use with WZ1-30UC (30cm balloon wheel included)



Testimonial

Hello Drew,

Back from summer holidays and I am providing you a picture and feedback on the boat dolly with 49cm wheels I purchased before Christmas. With a couple of minor adjustments, the dolly has worked very well, enabling me without help to move the boat plus engine and gear with ease and in one trip, thus saving time and effort which has meant the boat has been used far more this summer

Timely and informative advice provided before purchase. Order received promptly. Quality of dolly is high. Dolly was simple and easy to put-together. Dolly moves the boat easily on gravel, grass and soft sand. With the boat (over) loaded with ski gear, safety equipment, fuel, and engine, it can be retrieved from the water singled handed with a bit of effort and even up a modest incline. All-up, the boat engine  and equipment probably weigh +160kg, and this feels like it is getting close to the maximum I would put on the dolly. With the front caster wheel balloon tyre ‘tracking’ somewhat due to the weight on it I ended up fixing the caster so it doesn’t rotate and runs straight, this works well. Despite the buoyancy of the large balloon tyres in the water and the weight of the boat,  getting the boat back on the dolly single handed can be done. In thigh deep water I get the bow of the boat onto the dolly’s support webbing then using the weight of the boat and alternately pushing down on each of the wheels I ‘shimmy’ the boat on. However, I have ended up tying a rope to the front of the dolly, passing it through a single pulley and clipping the pulley to the front of the boat. With this I can relatively easily drag the boat (fully loaded) back on the dolly. Again this is done in thigh depth water, getting the bow of the boat on the support webbing first. The weight of the boat submerges the dolly as it slides on.

Thanks for the dolly, I hope the feedback is useful.

Regards,

Rohan Walsh

Additional information

Length

30cm, 42cm, 49cm
