Wheeleez™ Caster with 30cm PU wheel (Swivel Caster with ‘Rigid’ Caster option)

Complete Caster Assembly for Wheeleez™ 30cm PU Balloon Wheel.

Includes:

• Mounting Plate with Lanyard and Hitch Pin attached
• Caster Fork Assembly

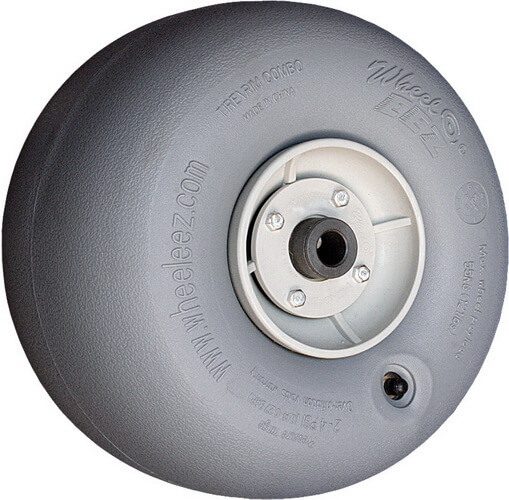

• 1x Wheeleez™ 30cm PU Balloon Wheel

Specifications:

• Caster Fork
  • Electro-polished, 316 Marine Grade Stainless Steel construction.
  • Outside fork width: 29cm, Fork height: 25cm, wall thickness: 2mm
  • Bushing diameter: 35 x 40mm L
  • Stem Bolt: 70mm L x 12mm dia.
  • Caster Locking Sleeve: Locks swivel
• Base Plate
  • Electro-polished, 316 Marine Grade Stainless Steel construction.
  • Measures: 14 L x 14cm square and 5mm thick
  • Bolt hole pattern: 8 x 8cm square
  • Bolt holes: 2 L x 1cm W
  • Stainless Steel Hitch Pin with Lanyard included
• Maximum Payload: 55 kg
• Base Plate mounting hardware not included

example of drawing req. but with our bolt hole pattern measurements
