Wheeleez™ Caster Fork Assembly for 30cm PU wheel

Wheeleez™ Caster Fork Assembly for 30cm PU wheel

$149.99

Swiveling caster fork assembly for 30cm Wheeleez™ PU wheels. Includes: Tubular fork of electro-polished, 316 marine grade stainless steel with stem bolt welded on.

For use in conjunction with Caster Base Plate or in other applications where casters are required.

Order WZ1-30UB wheel to fit this caster.

SKU: WZ4-CF-30 Categories: ,

Description

Swiveling caster fork assembly for 30cm Wheeleez™ PU wheels. Includes: Tubular fork of electro-polished, 316 marine grade stainless steel with stem bolt welded on.

For use in conjunction with Caster Base Plate or in other applications where casters are required.

Specifications:

  • Weight: .88 kg
  • Caster fork Dimensions: Overall: 28 x 28 x 5cm
  • Stem Bolt: 7cm length x 12.45mm diameter
  • Bushing: 4cm height x 3.65cm diameter
  • Maximum Payload: 55 kg

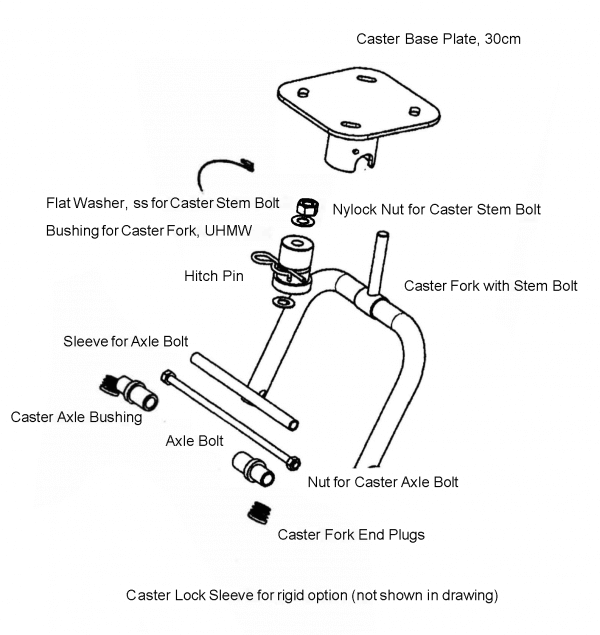

Wheeleez™ Caster Parts
